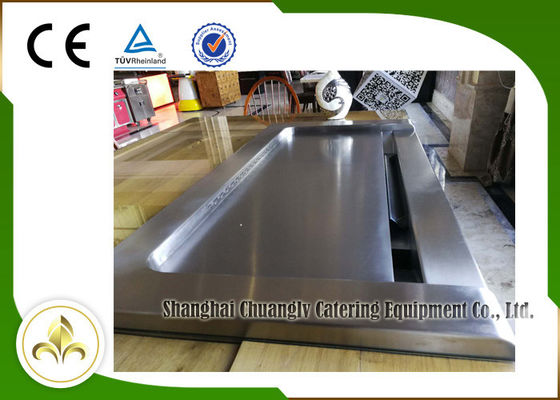

8 Seats Down Smoke Exhaustion Front Air Supply Sunken Air Inlet Desgin Rectangle Electric Teppanyaki Grill Table
Teppanyaki Grill Structure
A piece of smoke down exhaustion teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.
The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.
The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.
Interior Structure
Heating System:
Electric heating system: Electric tube heaters or electromagnetic plate. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.
Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct.
Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.
Electrostatic Fume Purifier Device
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder
Technical Parameters of 8 Seats Down Smoke Exhaustion Front Air Supply Sunken Air Inlet Desgin Rectangle Electric Teppanyaki Grill Table:
| Product Name | 8 Seats Down Smoke Exhaustion Front Air Supply Sunken Air Inlet Desgin Rectangle Electric Teppanyaki Grill Table |
| Heating | Electric Tube Heaters |
| Material | Stainless Steel 304/ Alloy Steel |
| Parameter | 380V/50HZ/8KW or 220V/60HZ/6KW |
| Cooking Area | Regular: 450*400mm or Enlarged: 600*400mm |
| Capacity | 8 Seats |
| Grill Dimension | 1600*850*800mm |
| Dimension with Table Top | 2600*1350*800mm |
| Exhaustion | Built-in air blower (380V/0.25KW or 220V/0.51KW) |
| Purification | Built-in electrostatic fume purifier (220V/0.25KW) |
| Table Decoration | Regular design/customization |
| Application | Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc. |
| Cookable Food | Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc. |
| Lead Time | 15-30 working days |
| Packaging | Standard Shipping Wooden Case |
| Brand | GREENARK/OEM |
| Certification | ISO9001-2008, CE available; CSA, UL in progress |
