Down Fume Exhaustion Front Air Supply Sunken Air Inlet Rectangle Electric Teppanyaki Grill Table 7 Seats

Place of Origin Shanghai, China
Brand Name GREENARK
Certification ISO9001, CE
Model Number CL-C7
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Standard Exporting Wooden Case
Delivery Time Within 15 to 25 Work Days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 7 Seats Down Fume Exhaustion Front Air Supply Sunken Air Inlet Rectangle Electric Teppanyaki Grill Table Material Stainless Steel And Special Alloy Steel
Rated Power 380V/50HZ/8KW Or 220V/60HZ/6KW Cooking Area Regular: 450*400mm Or Enlarged: 600*400mm
Grill Equipment Dimension 1200*850*800mm Heating Method Electric Tube Heaters
High Light

Electric Teppanyaki Table

,

Electric Hibachi Cooktop

Leave a Message
Product Description

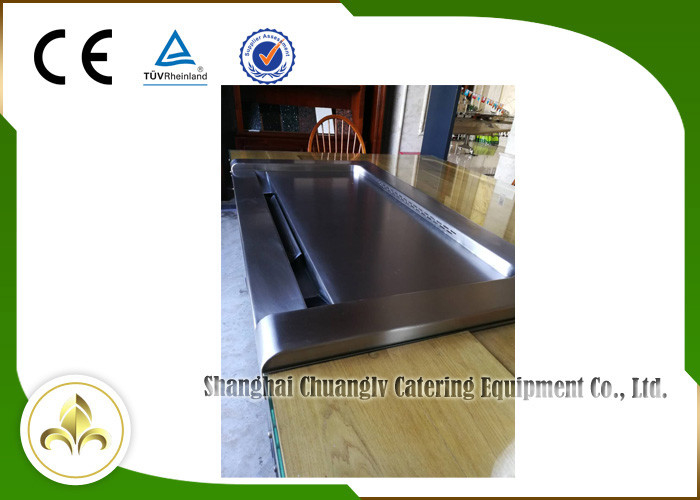

7 Seats Down Fume Exhaustion Front Air Supply Sunken Air Inlet Rectangle Electric Teppanyaki Grill Table



Teppanyaki Grill Structure
A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.
The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.
The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.


Interior Structure
Heating System:
Electric heating system: Electric tube heaters. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.

Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...


Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.


Electrostatic Fume Purifier Device
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder





Technical Parameters for 7 Seats Down Fume Exhaustion Front Air Supply Sunken Air Inlet Rectangle Electric Teppanyaki Grill Table:



Product Name Rectangle Electric Teppnayaki Grill Table with Exhaustion & Purification System
Heating Method Electric Tube Heaters
Material Stainless Steel 304/ Alloy Steel
Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
Capacity 7 Seats
Grill Dimension 1200*850*800mm
Dimension with Table Top 2200*1350*800mm
Exhaustion Built-in air blower (380V/0.25KW or 220V/0.51KW)
Purification Built-in electrostatic fume purifier (220V/0.25KW)
Table Decoration Regular design/customization
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 15-30 working days
Packaging Standard Shipping Wooden Case
Brand GREENARK/OEM
Certification ISO9001-2008, CE available; CSA, UL in progress





Down Fume Exhaustion Front Air Supply  Sunken Air Inlet Rectangle Electric Teppanyaki Grill Table 7 Seats 0
