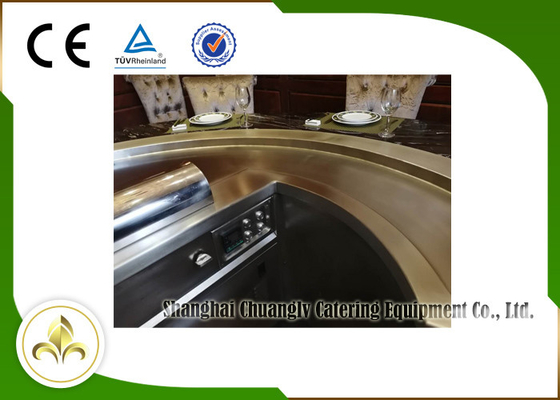

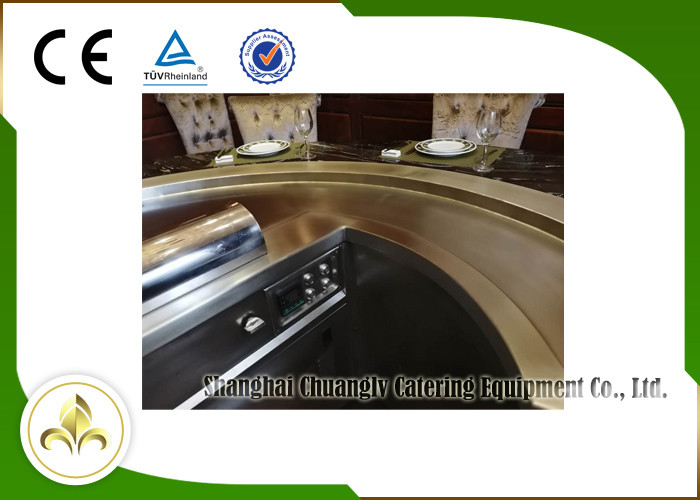

Upper or Down Fume Exhaustion Electric Teppanyaki Table Top Grill with 10 Seats

  • Upper or Down Fume Exhaustion Electric Teppanyaki Table Top Grill with 10 Seats
  • Upper or Down Fume Exhaustion Electric Teppanyaki Table Top Grill with 10 Seats
Place of Origin Shanghai, China
Brand Name GREENARK
Certification CE, CSA, ISO9001
Model Number CL-Y10
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Case
Delivery Time Within 15 to 25 Work Days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 units per month
Product Details
Product Name 10 Seats Electric Heating Stainless Steel Upper Or Down Fume Exhaustion Electric Teppanyaki Grill Table Material Stainless Steel & Alloy Steel
Rated Power 380V/50HZ/8KW Or 220V/60HZ/6KW Cooking Area Regular: 450*400mm Or Enlarged: 600*400mm
Grill Dimension R800*800mm Dimension With Table Top Surrounding R1350*800mm
High Light

Electric Teppanyaki Table

,

Electric Hibachi Cooktop
Leave a Message
Product Description

10 Seats Electric Heating Stainless Steel Upper or Down Fume Exhaustion Electric Teppanyaki Grill Table



1. Electromagnetic (Induction) Heating Method:



We are the only manufacturer in China who specially designed and assembles electromagnetic plate and motor for teppanyaki equipment.



We use German infineon power module and NEC rectifier.



The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time.



Electromagnetic radiation is only 18-35k, which is much lower than the European standard limit of 100k.



2. Electric Tube Heaters Heating Method:



See the comparison between Electric Tube Heaters and Electromagnetic (Induction) Heating as below



Heating Method Electromagnetic/Induction Electric Tube Heaters
Regular Parameter 380v/50hz/8kw/3-Phase 380v/50hz/8kw/3-Phase
Rated Pressure / /
Consumption 8kwh 8kwh
Cooking Area 450*400mm 600*400mm
Enlarged Cooking Area 600*400mm 700*400mm
Temp Rising 6min to Reach 260℃ 15-18min to Reach 260℃
Temp Difference Between Real Temp & Indicator Temp ±1℃ ±20℃
Homeothermy Good Normal
Adventage Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k Safe, high efficiency, easy operation; low temperature return, takes about 2-3min to get the set temperature after cooking a dish



Upper or Down Fume Exhaustion Electric Teppanyaki Table Top Grill with 10 Seats 0
