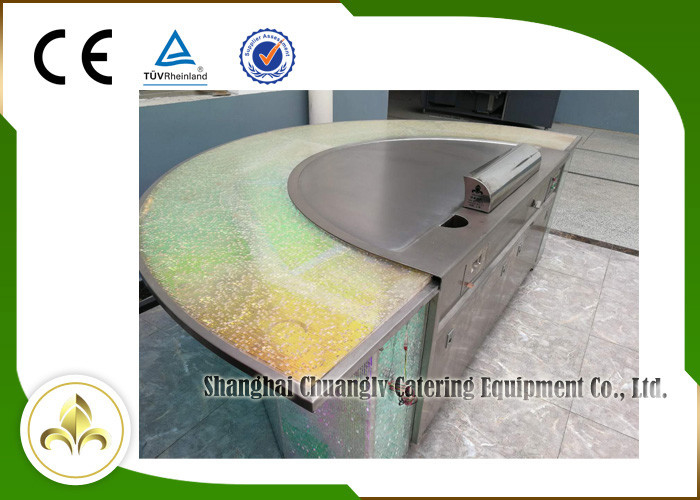

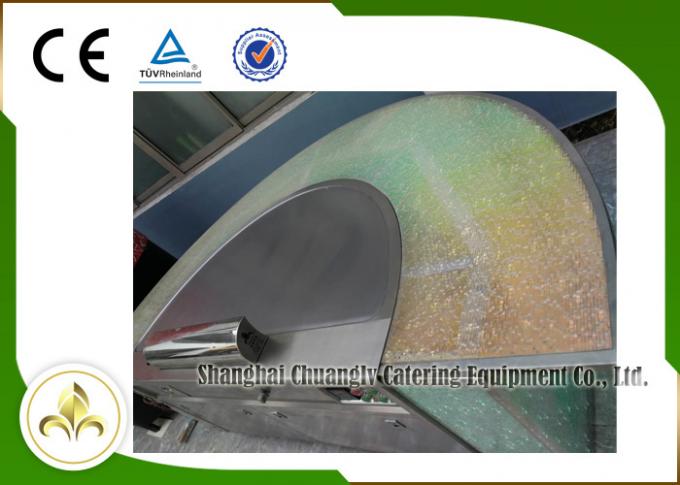

8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Teppanyaki Table

Product Details

Place of Origin: Shanghai, China

Brand Name: GREENARK

Certification: ISO9001;CE;CSA

Model Number: CL-DCP-B8

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: Standard Exporting Wooden Case

Delivery Time: Within 15 to 25 Work Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 units per month

Get Best Price
Contact Now
Specifications
High Light:

teppanyaki table grill

,

built in teppanyaki grill

Product Name:
8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Upper Or Down Fume Exhaustion Teppanyaki Grill Table
Material:
Stainless Steel And Special Alloy Steel
Heating Method:
Electromagnetic Or Induction
Main Heating Area:
Regular: 450*400mm Or Enlarged: 600*400mm
Dimension With Table Top:
R1350*800mm
Rated Power:
380V/50HZ/8KW Or 220V/60HZ/6KW
Product Name:
8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Upper Or Down Fume Exhaustion Teppanyaki Grill Table
Material:
Stainless Steel And Special Alloy Steel
Heating Method:
Electromagnetic Or Induction
Main Heating Area:
Regular: 450*400mm Or Enlarged: 600*400mm
Dimension With Table Top:
R1350*800mm
Rated Power:
380V/50HZ/8KW Or 220V/60HZ/6KW
Description
8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Teppanyaki Table

8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table





Teppanyaki Grill Structure




A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.
The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.
The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.





Interior Structure



Heating System:
Electric heating system: Electromagnetic or Induction Heating Plate. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.



Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...


Built-in Air Blower (Optional)
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.


Electrostatic Fume Purifier Device (Optional)
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology


Power-off protection device in case of output disorder





The following is the detaill technical parameters for this 8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table:



Product Name 8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table
Heating Electromagnetic (Induction)
Material Stainless Steel / Alloy Steel
Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
Capacity 8 Seats
Grill Dimension R850*800mm
Dimension with Table Top R1350*800mm
Exhaustion Built-in air blower (380V/0.25KW or 220V/0.51KW)
Purification Built-in electrostatic fume purifier (220V/0.25KW)
Table Decoration Regular design/customization
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 15-25 working days
Packaging Standard Shipping Wooden Case
Brand GREENARK/OEM
Certification ISO9001-2008, CE available; CSA, UL in progress





8 Seats Stainless Steel Electromagnetic Heating Semi-Circle Shape  Teppanyaki Table 0
