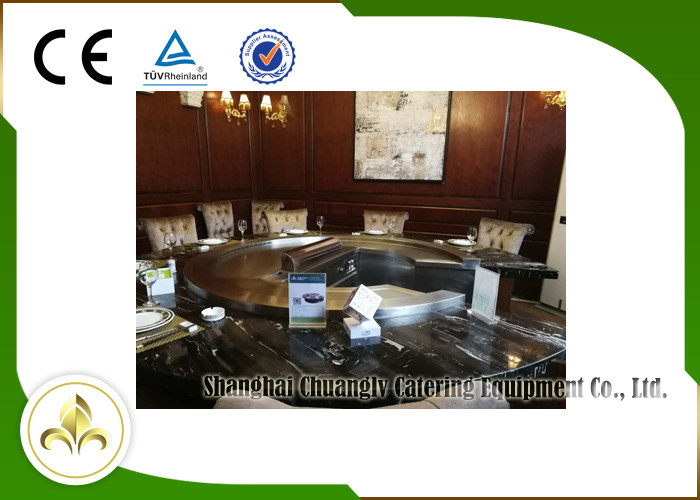

Upper or Down Fume Exhaustion Gas Teppanyaki Grill Table 12 Seats Pipeline Natural Gas Heating
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | GREENARK |
| Certification | ISO9001, CE, CSA |
| Model Number | CL-Y12 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiable |
| Packaging Details | Standard Exporting Wooden Case |
| Delivery Time | Within 15 to 25 Work Days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Equipment Name | 12 Seats Pipeline Natural Gas Heating Stainless Steel Upper Or Down Fume Exhaustion Gas Teppanyaki Grill Table | Material | Stainless Steel And Alloy Steel |
|---|---|---|---|
| Rated Power | 8KW | Cooking Area | Diameter 500mm |
| Grill Dimension | R1000*800mm | Consumption | LPG: 0.29m³/h Or 0.6kgs/h; Pipeline Nat Gas: 0.8m³/h |
| High Light | gas teppanyaki plate,gas grill griddle |
||
Product Description
12 Seats Pipeline Natural Gas Heating Stainless Steel Upper or Down Fume Exhaustion Gas Teppanyaki Grill Table
Pipeline Natural Gas Teppanyaki:
We equip Gas Teppanyaki Grill Machine with thermostat control, automatic electronic ignition device, automatic flame failure protection device.
The grill body is made of stainless steel.
The heating plate is made of special alloy steel with thickness of 20mm in one-piece unibody with no deformation or discoloration after long time use.
The operation panel, waste container and filter are made of 1.0mm stainless steel, and the air inlet is made of 1.5mm mirror surface stainless steel.
Comparision between electric and gas/lpg heating methods:
| Heating Method | Electromagnetic/Induction | Electric Tube Heaters | LPG | Pipeline Natural Gas |
| Regular Parameter | 380v/50hz/8kw/3-Phase | 380v/50hz/8kw/3-Phase | 8kw(≈18mj/m³) | 8kw(≈33mj/m³) |
| Rated Pressure | / | / | 2800pa±500pa | 2000pa±10% |
| Consumption | 8kwh | 8kwh | 0.29m³/0.6kgs/h | 0.8m³/h |
| Cooking Area | 450*400mm | 600*400mm | φ500mm | φ500mm |
| Enlarged Cooking Area | 600*400mm | 700*400mm | / | / |
| Temp Rising | 6min to Reach 260℃ | 15-18min to Reach 260℃ | 15min to Reach 260℃ | 15min to Reach 260℃ |
| Temp Difference Between Real Temp & Indicator Temp | ±1℃ | ±20℃ | ±20℃ | ±20℃ |
| Homeothermy | Good | Normal | Normal | Normal |
| Adventage | Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k | Safe, high efficiency, easy operation; low temperature return, takes about 2-3min to get the set temperature after cooking a dish | Thermostat control, automatic electronic ignition device, automatic flame failure protection device | Thermostat control, automatic electronic ignition device, automatic flame failure protection device |
Technical Parameter for 12 Seats Pipeline Natural Gas Heating Stainless Steel Upper or Down Fume Exhaustion Gas Teppanyaki Grill Table is as below:
| Product Name | 12 Seat Circle Gas Teppnayaki Grill Table with Exhaustion & Purification System |
| Heating | LPG/Pipeline Natural Gas |
| Material | Stainless Steel 304/ Alloy Steel |
| Rated Heat Power | 8KW |
| Cooking Area | diameter 500mm |
| Capacity | 12 Seats |
| Grill Dimension | R1000*800mm |
| Dimension with Table Top | R1500*800mm |
| Air Consumption | LPG: 0.29m³/h or 0.6kgs/h; Pipeline Nat Gas: 0.8m³/h |
| Exhaustion | Built-in air blower (380V/0.25KW or 220V/0.51KW) |
| Purification | Built-in electrostatic fume purifier (220V/0.25KW) |
| Table Decoration | Regular design/customization |
| Application | Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc. |
| Cookable Food | Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc. |
| Lead Time | 15-30 working days |
| Packaging | Standard Shipping Wooden Case |
| Brand | GREENARK/OEM |
| Certification | ISO9001-2008, CE available; CSA, UL in progress |
