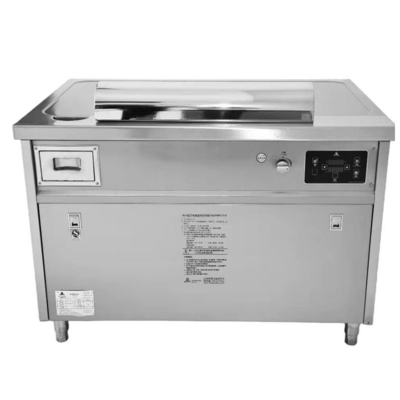

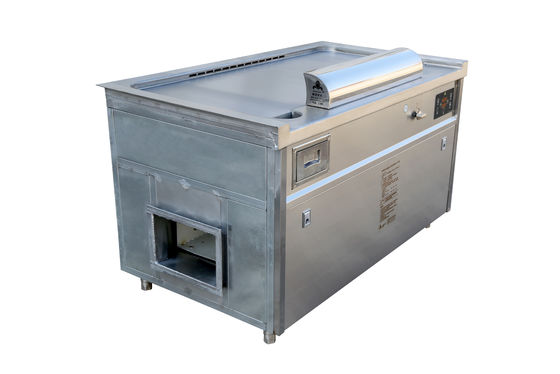

Rectangle Stainless Steel Hibachi BBQ Grill Table For Teppanyaki

Place of Origin Shanghai, China
Brand Name GREENARK
Certification CE, CSA
Model Number TR05-02-21-90-00
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Standard Exporting Wooden Case
Delivery Time Within 15 to 25 Work Days
Payment Terms T/T, L/C, West Union
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel 304 & Alloy Steel Heating Electric/LPG/Pipeline Natural Gas
Heat Power 10 KW Rated Pressure LPG: 2800pa; Pipeline Nat Gas: 2000pa
Dimensions 1200×850×800 Mm Heating Area 500*380 Mm
Purification Stainless Steel Filter Optional Configuration Built-in Air Blower & Fume Purifier
High Light

Rectangle Teppanyaki Hibachi BBQ Grill

,

Stainless Steel Hibachi BBQ Grill

,

Rectangle Commercial Hibachi Grill

Leave a Message
Product Description

Rectangle Teppanyaki Grill Table Hibachi BBQ Grill Routine/Customization



GREENARK Electromagnetic (Induction) Teppanyaki Grill Tables is the most attractive and valuable TEPPANYAKI GRILL TABLE SERIES among the whole CHUANGLV products. Why say this? The market has tested the electromagnetic teppanyaki grill table for us and certified that whoever regards customers' real requirement as the first position will win the market.
The electromagnetic system is the exclusive design by Chuanglv Group and we are also the only manufacturer and exporter in China producing the electromagnetic plate and motor for teppanyaki equipment by ourselves. The electromagnetic or induction heating system contains the German Infinon power module and NEC rectifier. The circuit board material is in conformity with UL and Rohs certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative
material makes the motor work for a much longer time. Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k. The circuit board material is in conformity with UL and Rohs certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time. Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.

The grill body is made of German 304 stainless steel, heating plate made of special alloy steel with thickness of 20mm, one-piece unibody, no deformation or discoloration after long time use. Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel. Amazing craftmanship of cutting, bending and polishing by imported intelligent processing machines.
The built-in air blower for customers' option has a high temperature resistant and makes the teppanyaki grill equipment with low noise. And the other option of built-in Taiwan Electrostatic Fume Purifier can absorb fume particles with diameter of over 0.1mm with processing efficiency of 93%-97%. High and low voltage dust collecting plate separation technology, easy for cleaning.
Advanced point discharging technology. Power-off protection device for output disorder. Certification: ISO 9001-2008; CE; CSA; UL certification is in process.The cooking plate is made of special alloy steel of 20mm thickness. The one unibody mould to avoids deformation or color change.



Product Name Rectangle Teppanyaki Grill Table Hibachi BBQ Grill Routine/Customization
Heating Electric/LPG/Pipeline Natural Gas
Material Stainless Steel 304/ Alloy Steel
Rated Pressure LPG: 2800pa; Pipeline Nat Gas: 2000pa
Rated Heat Power 10KW
Cooking Area 500*380 mm
Capacity 7 Seats
Grill Dimension 1200×850×800 mm
Air Consumption LPG: 0.29m³/h or 0.6kgs/h; Pipeline Nat Gas: 0.8m³/h
Optional Configuration built-in air blower & fume purifier
Purification Stainless Steel Filter
Table Decoration Regular design/customization
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 15-30 working days
Packaging Standard Shipping Wooden Case
Brand GREENARK/OEM
Certification ISO9001-2008, CE available; CSA, UL in progress



FAQ: Why choose Chuanglv GREENARK Teppanyaki?



§ Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel.



§ Amazing craft of cutting, bending and polishing by imported intelligent processing machines.



§ The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time;


§ Gas consumption: LPG 0.29m3/h (0.6kgs), pipeline gas 0.8m3/h.


§ Built-in Taiwan Electrostatic Fume Precipitator:
High and low voltage dust collecting plate separation technology, easy to clean;


§ Certification: ISO 9001-2008; CE; CSA & UL certification in progress.



Rectangle Stainless Steel Hibachi BBQ Grill Table For Teppanyaki 0





Comparison Of Three Heating Methods
Heating Method Electromagnetic/Induction LPG Pipeline Natural Gas
Regular Parameter 380v/50hz/10kw/3-Phase 10kw(≈23mj/m³) 10kw(≈41mj/m³)
Rated Pressure / 2800pa±500pa 2000pa±10%
Consumption 10kwh 0.29m³/0.6kgs/h 0.8m³/h
Cooking Area 450*400mm φ500mm φ500mm
Enlarged Cooking Area 600*400mm / /
Temp Rising 6min to Reach 260℃ 15min to Reach 260℃ 15min to Reach 260℃
Temp Difference Between Real Temp & Indicator Temp ±1℃ ±20℃ ±20℃
Homeothermy Good Poor Poor
Adventage Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k Thermostat control, automatic electronic ignition device, automatic flame failure protection device Thermostat control, automatic electronic ignition device, automatic flame failure protection device
