Product Details
Place of Origin: Shanghai, China
Brand Name: GREENARK
Certification: CE, CSA
Model Number: TR05-02-21-90-00
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard Exporting Wooden Case
Delivery Time: Within 15 to 30 Work Days
Payment Terms: T/T, L/C, West Union
Supply Ability: 500 units per month
Diameter: |
1200/1600/2000/2400mm |
Width: |
850mm |
Height: |
800mm |
Material: |
Food Grade Special Alloy Steel |
Temperature Range: |
50-300℃ |
Heating: |
Electric/LPG/Natural Gas/Induction |
Voltage: |
380V/220V |
Power: |
8KW/5KW |
Heating Area: |
500*380 Mm |
Exhaustion: |
Optional Built-in Air Blower |
Purification: |
Built-in Fume Purifier |
Thickness Of Griddle Plate: |
20mm |
Diameter: |
1200/1600/2000/2400mm |
Width: |
850mm |
Height: |
800mm |
Material: |
Food Grade Special Alloy Steel |
Temperature Range: |
50-300℃ |
Heating: |
Electric/LPG/Natural Gas/Induction |
Voltage: |
380V/220V |
Power: |
8KW/5KW |
Heating Area: |
500*380 Mm |
Exhaustion: |
Optional Built-in Air Blower |
Purification: |
Built-in Fume Purifier |
Thickness Of Griddle Plate: |
20mm |

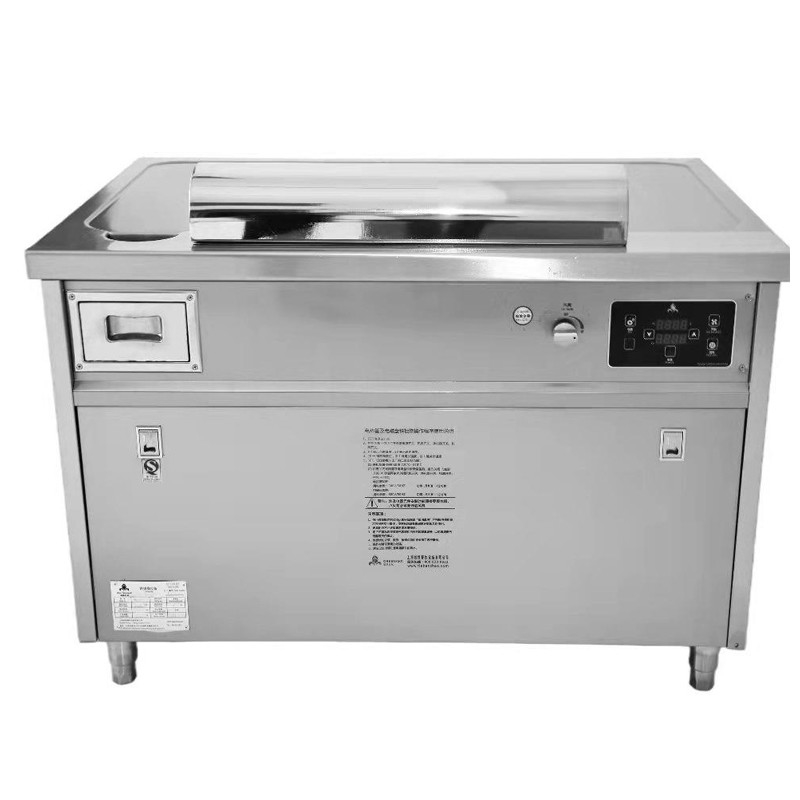

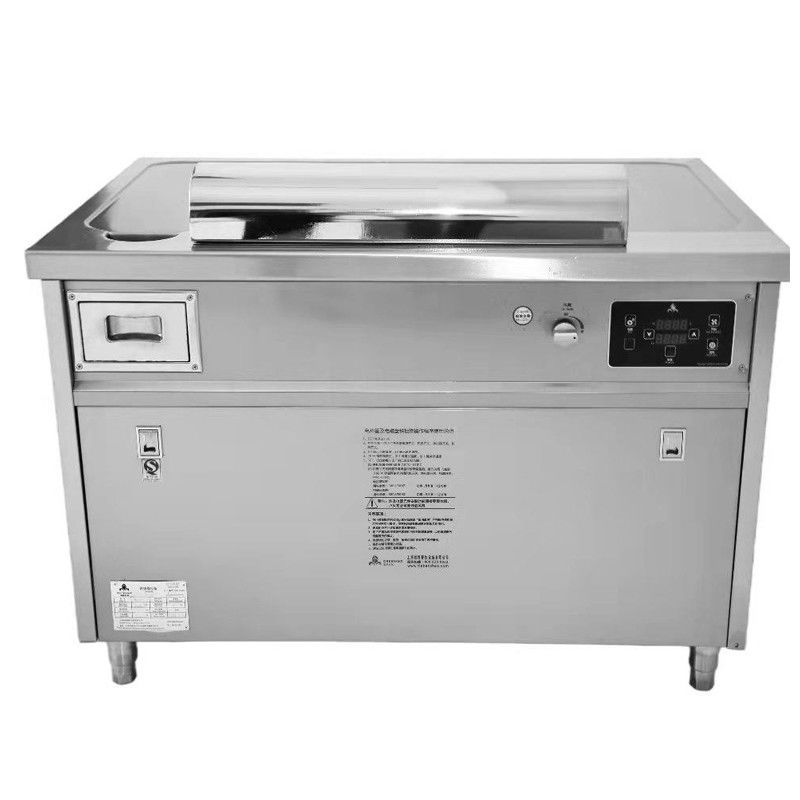

Rectangle Stainless Steel Japanese Teppanyaki Grill Table Built in Griddle
GREENARK Electromagnetic (Induction) Teppanyaki Grill Tables is the most attractive and valuable TEPPANYAKI GRILL TABLE SERIES among the whole CHUANGLV products. Why say this? The market has tested the electromagnetic teppanyaki grill table for us and certified that whoever regards customers' real requirement as the first position will win the market.
The electromagnetic system is the exclusive design by Chuanglv Group and we are also the only manufacturer and exporter in China producing the electromagnetic plate and motor for teppanyaki equipment by ourselves. The electromagnetic or induction heating system contains the German Infinon power module and NEC rectifier. The circuit board material is in conformity with UL and Rohs certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative
material makes the motor work for a much longer time. Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k. The circuit board material is in conformity with UL and Rohs certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time. Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.
The grill body is made of German 304 stainless steel, heating plate made of special alloy steel with thickness of 20mm, one-piece unibody, no deformation or discoloration after long time use. Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel. Amazing craftmanship of cutting, bending and polishing by imported intelligent processing machines.
The built-in air blower for customers' option has a high temperature resistant and makes the teppanyaki grill equipment with low noise. And the other option of built-in Taiwan Electrostatic Fume Purifier can absorb fume particles with diameter of over 0.1mm with processing efficiency of 93%-97%. High and low voltage dust collecting plate separation technology, easy for cleaning.
Advanced point discharging technology. Power-off protection device for output disorder. Certification: ISO 9001-2008; CE; CSA; UL certification is in process.The cooking plate is made of special alloy steel of 20mm thickness. The one unibody mould to avoids deformation or color change.
| Product Name | Rectangle Stainless Steel Japanese Teppanyaki Grill Table Built in Griddle |
| Heating | Electric/LPG/Natural Gas/Induction |
| Material | Stainless Steel 304/ Food Grade Special Alloy Steel |
| Rated Heat Power | 380V/220V, 8KW/5KW |
| Cooking Area | 500*380 mm |
| Capacity | 7/8/9/10 Seats |
| Grill Dimension | 1200×850×800 mm/1600*850*800mm/2000*850*800mm/customized |
| Optional Configuration | built-in air blower & fume purifier |
| Purification | Electrostatic Fume Purifier |
| Table Decoration | Regular design/customization |
| Application | Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc. |
| Cookable Food | Beef, mutton, chicken, fish, shellfish, vegetables, rice, noodles, etc. |
| Lead Time | 15-30 working days |
| Packaging | Standard Shipping Wooden Case |
| Brand | GREENARK/OEM |
| Certification | ISO9001-2008, CE available; CSA, UL in progress |
FAQ: Why choose Chuanglv GREENARK Teppanyaki?
§ Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel.
§ Amazing craft of cutting, bending and polishing by imported intelligent processing machines.
§ The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat-resistant insulative material makes the motor work for a much longer time;
§ Gas consumption: LPG 0.29m3/h (0.6kgs), pipeline gas 0.8m3/h.
§ Built-in Taiwan Electrostatic Fume Precipitator:
High and low voltage dust collecting plate separation technology, easy to clean;
§ Certification: ISO 9001-2008; CE; CSA & UL certification in progress.
| Comparison Of Three Heating Methods | |||
| Heating Method | Electromagnetic/Induction | LPG | Pipeline Natural Gas |
| Regular Parameter | 380v/50hz/8kw/3-Phase | 8kw(≈23mj/m³) | 8kw(≈41mj/m³) |
| Rated Pressure | / | 2800pa±500pa | 2000pa±10% |
| Consumption | 10kwh | 0.29m³/0.6kgs/h | 0.8m³/h |
| Cooking Area | 450*400mm | φ500mm | φ500mm |
| Enlarged Cooking Area | 600*400mm | / | / |
| Temp Rising | 6min to Reach 260℃ | 15min to Reach 260℃ | 15min to Reach 260℃ |
| Temp Difference Between Real Temp & Indicator Temp | ±5℃ | ±20℃ | ±20℃ |
| Homeothermy | Good | Poor | Poor |
| Adventage | Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k | Thermostat control, automatic electronic ignition device, automatic flame failure protection device | Thermostat control, automatic electronic ignition device, automatic flame failure protection device |
|
Comparison Of Three Heating Methods Cold starting to preheat(til reaching gradient range of 250 ℃ in the center of elliptical surface of table) |
|||||
| Project/Parameter | Electric Type | Gas type | |||
| Electromagnetic | Electric heating tube | Atmospheric burner | |||
| Manufactured Gas | LPG | Natural gas | |||
| Input Power KW(m/h |
8KW | 8KW | |||
| 2.28m³/h | 0.285m³/h | 0.8m³/h | |||
| Preheating time | 8MIN | 25MIN | 30MIN | ||
| Consumptian (kw/m³) |
1.07 | 3.33 | 4/0.143m³(average) | ||
| Cost(RMB) | 1.18 | 3.66 | 2.23 | ||
| Note:Costs in above table calculated based on charges as below Electricity charge:RMB 1.10/kw,Gas charge:RMB 7.33/kgs(0.47m²) |
|||||
