Product Details
Place of Origin: Shanghai, China
Brand Name: GREENARK
Certification: ISO9001, CE, CSA
Model Number: CL-CDGN
Payment & Shipping Terms
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Standard Exporting Wooden Case
Delivery Time: Within 15 to 25 work days upon deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 units per month
Product Name: |
Eletromagnetic Teppanyaki Grill Table Multi Functional Rectangle Soup Stove Barbecue |
Material: |
Stainless Steel And Special Alloy Steel |
Heating Method: |
Electromagnetic And Electric Tube |
Grill Size: |
2200*850*800mm |
Main Power: |
8kw |
Main Cook Area: |
450*400mm Or 600*400mm |
Product Name: |
Eletromagnetic Teppanyaki Grill Table Multi Functional Rectangle Soup Stove Barbecue |
Material: |
Stainless Steel And Special Alloy Steel |
Heating Method: |
Electromagnetic And Electric Tube |
Grill Size: |
2200*850*800mm |
Main Power: |
8kw |
Main Cook Area: |
450*400mm Or 600*400mm |
Eletromagnetic Teppanyaki Grill Table Multi Functional Rectangle Soup Stove Barbecue
Heating System:
Electric heating system: Electric tube heaters or electromagnetic plate. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.
Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...
Optional Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise
Electrostatic Fume Purifier
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder
Grill Plate Polishing
1. Grinding the uneven weld bead then polish and shape carefully. The connecting part of the plate and trim strip must be smooth without sinking.
2. Fine grinding with fine wheel with processing requirement of the smoothness RA0.8.
3. Fine polishing of the whole plate with processing requirement of the smoothness RA0.4.
Technical Parameter of Teppanyaki Grill Table Multi Functional Rectangle:
Equipment Name | Electromagnetic Teppanyaki Grill Table Multi Functional Rectangle Soup Stove Barbecue | |
Heating Method | Electromagnetic (Induction) | |
Material | Stainless Steel & Special Alloy Steel | |
Capacity | Customized Seats | |
Soup Stove / BBQ Grill | 3kw / 220v | |
Electric Parameter | Voltage/Power | 380V/50HZ/8KW or 220V/60HZ/6KW for Each Heating System |
Cooking Area | Regular: 450*400mm or Enlarged: 600*400mm |

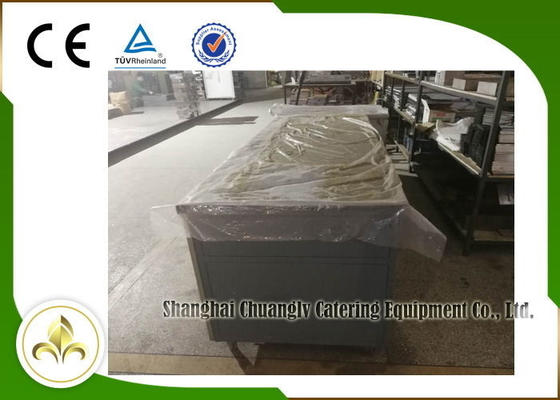

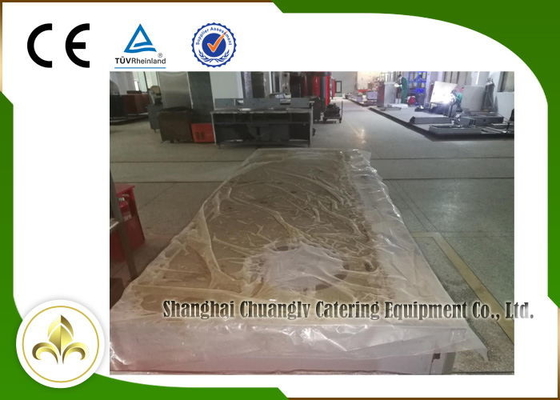

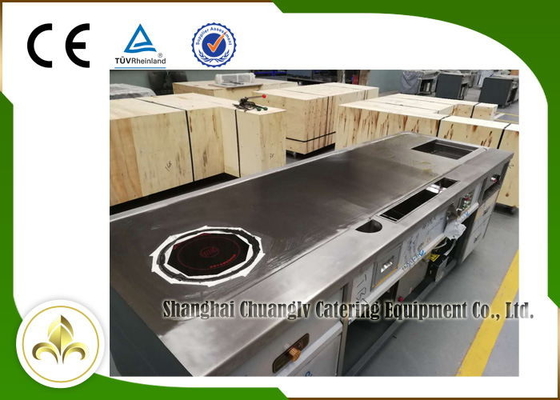

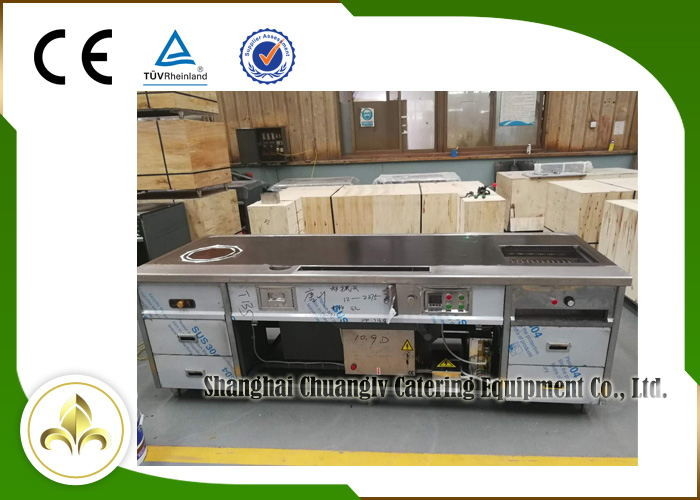

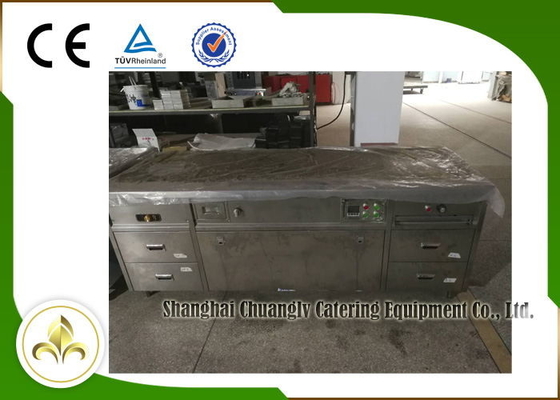

Pictures of Teppanyaki Grill Table Multi Functional Rectangle
