Brand Name: | GREENARK |
Model Number: | CL-M11 |
MOQ: | 1set |
Price: | Negotiable |
Delivery Time: | Within 15 to 25 Work Days |
Payment Terms: | T/T, L/C, West Union |

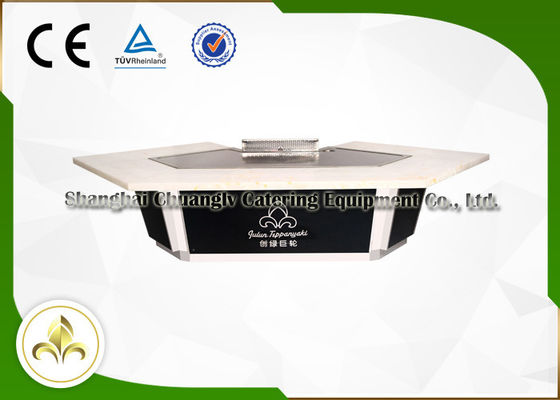

Conceptual Design Teppanyaki Hibachi Grill Japanese Cooking Table Bridge Shape
Product Name | Snow Mountain Conceptual Design Electric Teppanyaki Hibachi Grill Table |
Heating | Electromagnetic(Induction) |
Body Material | Stainless Steel 304/ Alloy Steel |
Parameter | 380V/50HZ/8KW or 220V/60HZ/6KW |
Cooking Area | Regular: 450*400mm or Enlarged: 600*400mm |
Shape | Bridge Shape |
Capacity | 11 Seats |
Grill Dimension | 2300*960*800mm |
Dimension with Table | 3200*1900*800mm |
Exhaustion | Optional built-in air blower (380V/0.25KW or 220V/0.51KW) |
Purification | Optional built-in electrostatic fume purifier (220V/0.25KW) |
Table Decoration | Marble table top; stainless steel & painted steel surroundings |
Application | Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc. |
Cookable Food | Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc. |
Lead Time | 20-30 work days |
Packaging | Standard Shipping Wooden Case |
Brand | GREENARK/OEM |
Certification | ISO9001-2008, CE available; CSA, UL in progress |
Why choose Chuanglv GREENARK Teppanyaki?
❀ Built-in Taiwan Electrostatic Fume Precipitator:
1) Absorbing fume particles with diameter of over 0.1 um (diameter) with processing efficiency of 93%-97%;
2) High and low voltage dust collecting plate separation technology, easy for cleaning;
3) Advanced point discharging technology;
4) Power-off protection device for output disorder.
❀ Electromagnetic(Induction) Teppanyaki:
1) The only manufacturer in China who specially designed and assembles electromagnetic plate and motor for teppanyaki equipment;
2) German Infinon power module and NEC rectifier;
3) The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time;
4) Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.
Comparison Of Three Heating Methods | |||
Heating Method | Electromagnetic/Induction | LPG | Pipeline Natural Gas |
Regular Parameter | 380v/50hz/8kw/3-Phase | 8kw(≈18mj/m³) | 8kw(≈33mj/m³) |
Rated Pressure | / | 2800pa±500pa | 2000pa±10% |
Consumption | 8kwh | 0.29m³/0.6kgs/h | 0.8m³/h |
Cooking Area | 450*400mm | φ500mm | φ500mm |
Enlarged Cooking Area | 600*400mm | / | / |
Temp Rising | 6min to Reach 260℃ | 15min to Reach 260℃ | 15min to Reach 260℃ |
Temp Difference Between Real Temp & Indicator Temp | ±1℃ | ±20℃ | ±20℃ |
Homeothermy | Good | Poor | Poor |
Adventage | Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k | Thermostat control, automatic electronic ignition device, automatic flame failure protection device | Thermostat control, automatic electronic ignition device, automatic flame failure protection device |
