10 Seats Upper Fume Exhaustion Oval Shape Japanese Teppanyaki Grill Table Electric Heating

Place of Origin Shanghai, China
Brand Name GREENARK
Certification CE, CSA, ISO9001
Model Number CL-B8
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Case
Delivery Time Within 15 to 25 Work Days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 10-12 Seats Stainless Steel Oval Shape Teppanyaki Grill Table Material Stainless Steel And Alloy Steel
Heating Method Electromagnetic Or Electric Tube Heaters Technical Parameter 380V/50HZ/8KW Or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm Or Enlarged: 600*400mm Dimension 1700x1400x800mm
High Light

japanese hibachi grill

,

japanese hibachi table

Leave a Message
Product Description

10 Seats Upper Fume Exhaustion Oval Shape Japanese Teppanyaki Grill Table Electric Heating



Structure of teppanyaki grill table

A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.



The cooking plate is made of special alloy steel of 20mm thick to avoid deformation and discoloration.

The whole equipment is designed integrated to avoid further assembly or disassembly.

Non-standard equipment can be customized according to customers' requirement.



Interior Structure

Heating System:

Electric heating system: Electric tube heaters or electromagnetic plate. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.





Technical Parameter for 8 Seats Upper Fume Exhaustion Stainless Steel Semi Circle Shape Electric Heating Japanese Teppanyaki Grill Table



Product Name Oval Shape Teppanyaki Grill Table
Heating Electromagnetic(Induction)
Material Stainless Steel 304/ Alloy Steel
Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
Capacity 10-12 Seats
Grill Dimension 1700x1400x800mm
Table Decoration Regular design/customization
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 15-30 working days
Packaging Standard Shipping Wooden Case
Brand GREENARK/OEM
Certification ISO9001-2008, CE available; CSA, UL in progress





Comparasion between Electric Heating Methods and Gas/LPG Heating Methods

Heating Method Electromagnetic/Induction Electric Tube Heaters LPG Pipeline Natural Gas
Regular Parameter 380v/50hz/8kw/3-Phase 380v/50hz/8kw/3-Phase 8kw(≈18mj/m³) 8kw(≈33mj/m³)
Rated Pressure / / 2800pa±500pa 2000pa±10%
Consumption 8kwh 8kwh 0.29m³/0.6kgs/h 0.8m³/h
Cooking Area 450*400mm 600*400mm φ500mm φ500mm
Enlarged Cooking Area 600*400mm 700*400mm / /
Temp Rising 6min to Reach 260℃ 15-18min to Reach 260℃ 15min to Reach 260℃ 15min to Reach 260℃
Temp Difference Between Real Temp & Indicator Temp ±1℃ ±20℃ ±20℃ ±20℃
Homeothermy Good Normal Normal Normal
Adventage Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k Safe, high efficiency, easy operation; low temperature return, takes about 2-3min to get the set temperature after cooking a dish Thermostat control, automatic electronic ignition device, automatic flame failure protection device Thermostat control, automatic electronic ignition device, automatic flame failure protection device

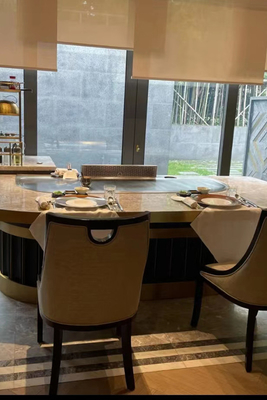

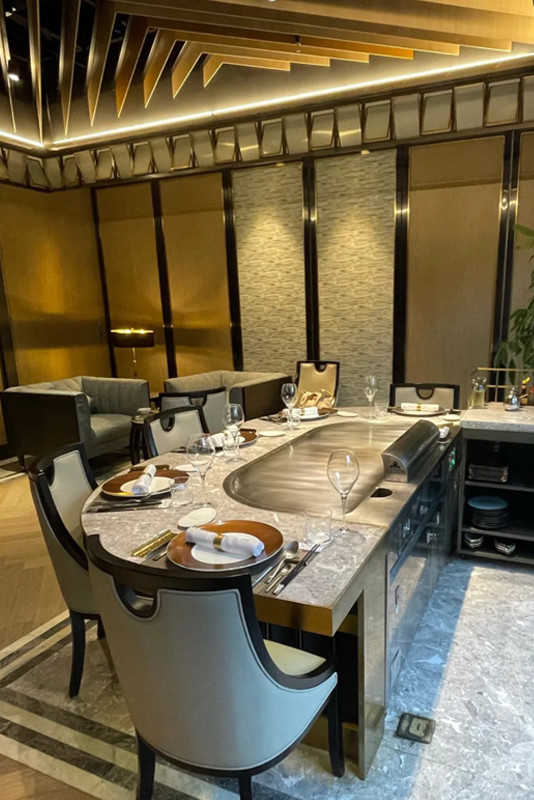

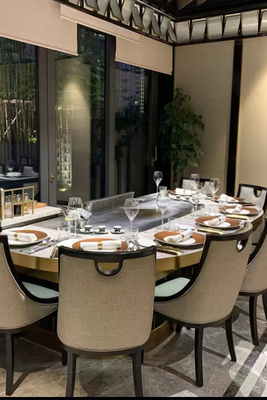

Amazing Mancraftmanship of GREENARK Teppanyaki Grill Table:

10 Seats Upper Fume Exhaustion Oval Shape Japanese Teppanyaki Grill Table Electric Heating 0
