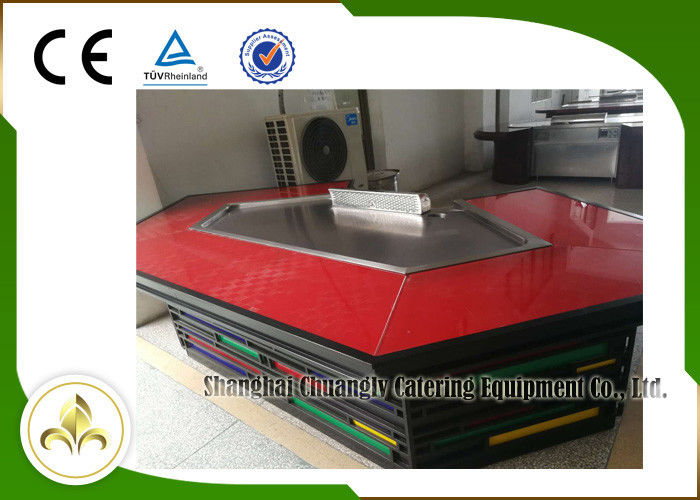

11 Seats Electric Tube Heating Teppanyaki Grill Table Stainless Steel Material

Place of Origin Shanghai, China
Brand Name GREENARK
Certification ISO9001;CE;CSA
Model Number CL-DRG-M11
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Case
Delivery Time Within 15 to 25 Work Days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 11 Seats Stainless Steel Electric Tube Heating Bridge Shape Upper Or Down Fume Exhaustion Teppanyaki Grill Table Material Stainless Steel And Special Alloy Steel
Heating Method Electric Tube Heaters Main Heating Area Regular: 450*400mm Or Enlarged: 600*400mm
Dimension With Table Top 3200*1900*800mm Rated Power 380V/50HZ/8KW Or 220V/60HZ/6KW
High Light

teppanyaki table grill

,

built in teppanyaki grill

Leave a Message
Product Description

11 Seats Stainless Steel Electric Tube Heating Bridge Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table





Amazing Craftsmanship of 11 Seats Stainless Steel Electric Tube Heating Bridge Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table



Plate Leveling
1. Remove the steel slag and burrs during cutting.
2. Leveling the plate until the evenness is no more than 0.5mm within an area of 300mm2.

Machine Processing
1. The flat plates will be planned and shaped by a planner leaving 0.3mm allowance for grinding by a grinder.
2. The non-flat plates will be cut and planned first, leaving 0.3mm allowance for grinding by a grinding wheel.
3. The processing smoothness requirement is RA0.8.

Plate Installation
1. Install according to the technical requirements in the drawing, and the parts with marks of tolerance dimensions must be left with corresponding welding shrinkage allowance to ensure the sizes after welding are within the tolerance.
2. The welding must be full penetration, and the welded surface must be smooth without solder faults, solder skips, slag inclusion, gas holes, cracks or undercut.
3. Correction after the welding temperature is reduced to make the plate evenness less than 0.2mm within 500mm², and the straightness of each edge less than 0.2mm within 500mm².

Plate Polishing
1. Grinding the uneven weld bead then polish and shape carefully. The connecting part of the plate and trim strip must be smooth without sinking.
2. Fine grinding with fine wheel with processing requirement of the smoothness RA0.8.
3. Fine polishing of the whole plate with processing requirement of the smoothness RA0.4.





Below is the technical parameters for this 11 Seats Stainless Steel Electric Tube Heating Bridge Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table:



Product Name 11 Seats Stainless Steel Electric Tube Heating Bridge Shape Upper or Down Fume Exhaustion Teppanyaki Grill Table
Heating Electric Tube Heaters
Material Stainless Steel & Alloy Steel
Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
Capacity 11 Seats
Grill Dimension 2300*960*800mm
Dimension with Table Top 3200*1900*800mm
Exhaustion Built-in air blower (380V/0.25KW)
Purification Built-in electrostatic fume purifier (220V/0.25KW)
Table Decoration Regular design/customization
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 15-25 working days
Packaging Standard Shipping Wooden Case
Brand GREENARK/OEM
Certification ISO9001-2008, CE available; CSA, UL in progress



11 Seats Electric Tube Heating Teppanyaki Grill Table Stainless Steel Material 0
