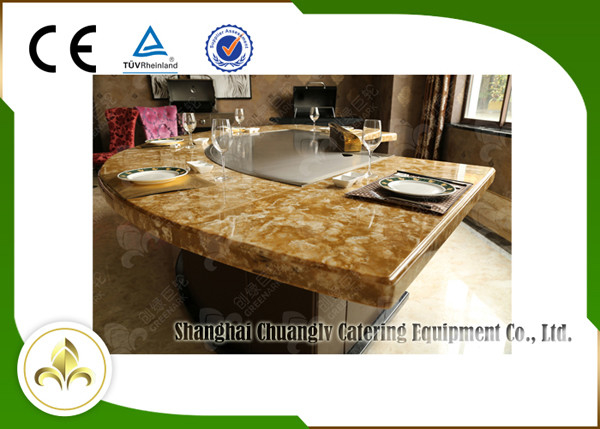

Fan Shape Down Fume Exhaustion Electric Teppanyaki Grill with 11 Seats Stainless Steel

Place of Origin Shanghai, China
Certification CE, CSA, ISO9001
Model Number CL-S9
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Case
Delivery Time Within 15 to 25 Work Days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 9 Seats Stainless Steel Fan Shape Electric Heating Down Fume Exhaustion Japanese Teppanyaki Grill Table Material Stainless Steel And Alloy Steel
Heating Method Electromagnetic (Induction) Or Electric Tube Heaters Rated Power 380V/50HZ/8KW Or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm Or Enlarged: 600*400mm Grill Dimension 2000*990*800mm
High Light

japanese hibachi grill


japanese hibachi table

Leave a Message
Product Description

11 Seats Stainless Steel Fan Shape Electric Heating Down Fume Exhaustion Japanese Teppanyaki Grill Table



Teppanyaki Grill Structure
A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.
The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.
The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.

Interior Structure
Heating System:
Electric heating system: Electric tube heaters or electromagnetic plate. The temperature is controlled by temperature controller, and the main heating area is 450*400mm.

Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...

Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.

Electrostatic Fume Purifier Device
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder



Amazing Craftsmanship


Plate Leveling
1. Remove the steel slag and burrs during cutting.
2. Leveling the plate until the evenness is no more than 0.5mm within an area of 300mm2.

Machine Processing
1. The flat plates will be planned and shaped by a planner leaving 0.3mm allowance for grinding by a grinder.
2. The non-flat plates will be cut and planned first, leaving 0.3mm allowance for grinding by a grinding wheel.
3. The processing smoothness requirement is RA0.8.

Plate Installation
1. Install according to the technical requirements in the drawing, and the parts with marks of tolerance dimensions must be left with corresponding welding shrinkage allowance to ensure the sizes after welding are within the tolerance.
2. The welding must be full penetration, and the welded surface must be smooth without solder faults, solder skips, slag inclusion, gas holes, cracks or undercut.
3. Correction after the welding temperature is reduced to make the plate evenness less than 0.2mm within 500mm², and the straightness of each edge less than 0.2mm within 500mm².

Plate Polishing
1. Grinding the uneven weld bead then polish and shape carefully. The connecting part of the plate and trim strip must be smooth without sinking.
2. Fine grinding with fine wheel with processing requirement of the smoothness RA0.8.
3. Fine polishing of the whole plate with processing requirement of the smoothness RA0.4.



Technical Parameter:

Product Name 9 Seat Fan Shape Electric Teppanyaki Grill with Exhaustion & Purification System
Heating Electromagnetic(Induction)
Material Stainless Steel 304 & Alloy Steel
Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
Capacity 9 Seats
Grill Dimension 2000*990*800mm
Dimension with Table Top 3302*2001*800mm
Exhaustion Built-in air blower (380V/0.25KW)
Purification Built-in electrostatic fume purifier (220V/0.25KW)
Table Decoration Regular design/customization
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 10-15 working days
Packaging Standard Shipping Wooden Case
Certification ISO9001-2008, CE available; CSA, UL in progress
