| Brand Name: | GREENARK |
| Model Number: | CL-T10 |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Delivery Time: | Within 15 to 25 Work Days |
| Payment Terms: | L/C, T/T, Western Union |

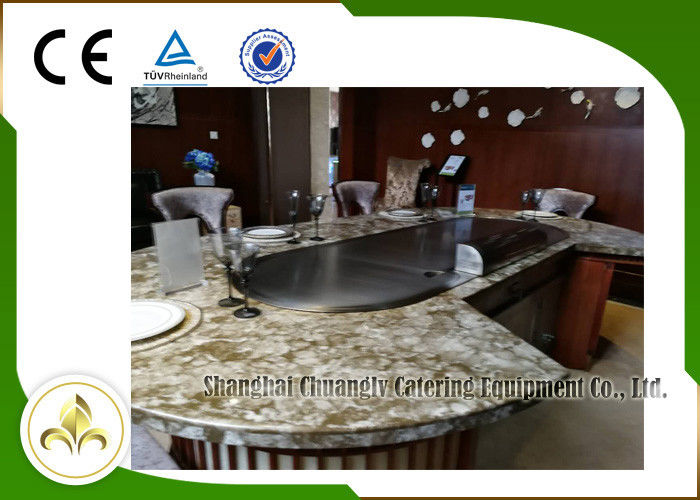

10 Seats LPG Heating Oval Shape Stainless Steel and Alloy Steel Upper or Down Exhaustion Japanese Teppanyaki Grill Table
Interior Structure
Heating System:
Gas or LPG heating system:
Casting Iron gas or LPG burner in diameter of 9 inches. The temperature is controlled by the LPG switch, and the main heating area is in diameter of 500mm.
Heat Preservation System:
The area around the main heating area is for warm keeping, and the temperature has to be within 100℃ to avoid hurting the customers or chefs.
Fire Prevention System:
To prevent fire getting into the exhaust duct and causing dangers.
Waste LPG Treatment System:
To exhaust and ventilate the waste lpg in the equipment.
Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...
Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.
Electrostatic Fume Purifier Device
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder
Technical Parameters for 10 Seats LPG Heating Oval Shape Stainless Steel and Alloy Steel Upper or Down Exhaustion Japanese Teppanyaki Grill Table:
| Product Name | 10 Seat Oval LPG Teppnayaki Grill with Exhaustion & Purification System |
| Heating | LPG |
| Material | Stainless Steel 304/ Alloy Steel |
| Rated Heat Power | 8KW |
| Rated Pressure | LPG: 2800pa; |
| Cooking Area | diameter of 500mm |
| Capacity | 10 Seats |
| Grill Dimension | 2200*860*800mm |
| Dimension with Table Top | 3200*1860*800mm |
| Gas Consumption | LPG: 0.29m³/h or 0.6kgs/h |
| Exhaustion | Built-in air blower (380V/0.25KW or 220V/0.51KW) |
| Purification | Built-in electrostatic fume purifier (220V/0.25KW) |
| Table Decoration | Regular design/customization |
| Application | Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc. |
| Cookable Food | Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc. |
| Lead Time | 10-15 working days |
| Packaging | Standard Shipping Wooden Case |
| Brand | GREENARK/OEM |
| Certification | ISO9001-2008, CE available; CSA, UL in progress |
