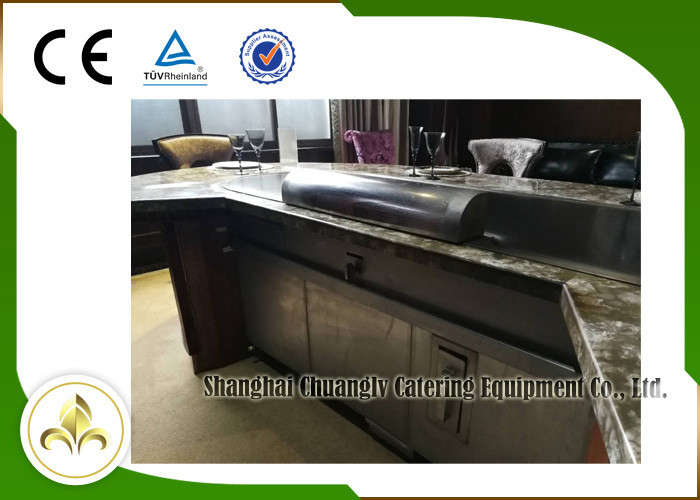

10 Seats Natural Gas Heating Oval Shape Stainless Steel Upper or Down Exhaustion Japanese Teppanyaki Grill Table

Teppanyaki Grill Structure

A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.
The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.
The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.

Interior Structure

Heating System:

Gas or LPG heating system:

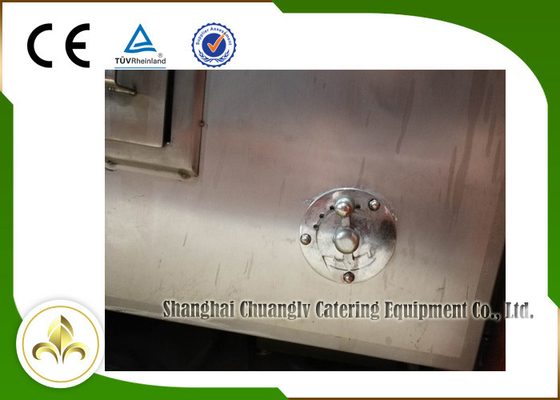

Casting Iron gas or LPG burner in diameter of 9 inches. The temperature is controlled by the gas or LPG switch, and the main heating area is in diameter of 500mm.

Heat Preservation System:

The area around the main heating area is for warm keeping, and the temperature has to be within 100℃ to avoid hurting the customers or chefs.

Fire Prevention System:

To prevent fire getting into the exhaust duct and causing dangers.

Waste Gas Treatment System:

To exhaust and ventilate the waste gas in the equipment.

Double Fume Filters:
The fume filter and oil collecting drawer can make the oil directly drop into the collecting drawer and not get into the air duct...

Built-in Air Blower
Equipped according to the functions of the teppanyaki equipment. Heat preservative, low noise, 380v/0.25kw.

Electrostatic Fume Purifier Device
Customized according to the equipment functions and sizes (220v/0.25kw)
Remove fume particles larger than diameter0.1μm with efficiency of 93-97.2%
Designed with high and low voltage dust collecting polar plate separation technology for easy cleaning
Advanced point discharging technology
Power-off protection device in case of output disorder
