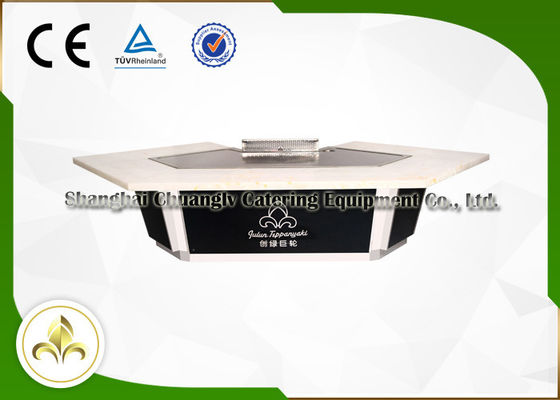

Conceptual Design Teppanyaki Hibachi Grill Japanese Cooking Table Bridge Shape

Conceptual Design Teppanyaki Hibachi Grill Japanese Cooking Table Bridge Shape

Conceptual Design Teppanyaki Hibachi Grill Japanese Cooking Table Bridge Shape

Product Details:

Place of Origin: Shanghai, China
Brand Name: GREENARK
Certification: CE, CSA
Model Number: CL-M11

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard Exporting Wooden Case
Delivery Time: Within 15 to 25 Work Days
Payment Terms: T/T, L/C, West Union
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 & Alloy Steel Heating: Electromagnetic (Induction)
Parameter: 380V/50HZ/8KW Dimensions: 2300*960*800mm
Dimensions With Table: 3200*1900*800mm Exhaustion: Optional Built-in Air Blower (380V/0.25KW Or 220V/0.51KW)
Purification: Optional Built-in Electrostatic Fume Purifier (220V/0.25KW) Table Decoration: Marble Table Top; Stainless Steel & Painted Steel Surroundings

Conceptual Design Teppanyaki Hibachi Grill Japanese Cooking Table Bridge Shape



Product Name Snow Mountain Conceptual Design Electric Teppanyaki Hibachi Grill Table
Heating Electromagnetic(Induction)
Body Material Stainless Steel 304/ Alloy Steel
Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
Shape Bridge Shape
Capacity 11 Seats
Grill Dimension 2300*960*800mm
Dimension with Table 3200*1900*800mm
Exhaustion Optional built-in air blower (380V/0.25KW or 220V/0.51KW)
Purification Optional built-in electrostatic fume purifier (220V/0.25KW)
Table Decoration Marble table top; stainless steel & painted steel surroundings
Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Lead Time 20-30 work days
Packaging Standard Shipping Wooden Case
Brand GREENARK/OEM
Certification ISO9001-2008, CE available; CSA, UL in progress


Why choose Chuanglv GREENARK Teppanyaki?



Built-in Taiwan Electrostatic Fume Precipitator:
1) Absorbing fume particles with diameter of over 0.1 um (diameter) with processing efficiency of 93%-97%;
2) High and low voltage dust collecting plate separation technology, easy for cleaning;
3) Advanced point discharging technology;
4) Power-off protection device for output disorder.



Electromagnetic(Induction) Teppanyaki:
1) The only manufacturer in China who specially designed and assembles electromagnetic plate and motor for teppanyaki equipment;
2) German Infinon power module and NEC rectifier;
3) The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time;
4) Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.



Conceptual Design Teppanyaki Hibachi Grill Japanese Cooking Table Bridge Shape



Comparison Of Three Heating Methods
Heating Method Electromagnetic/Induction LPG Pipeline Natural Gas
Regular Parameter 380v/50hz/8kw/3-Phase 8kw(≈18mj/m³) 8kw(≈33mj/m³)
Rated Pressure / 2800pa±500pa 2000pa±10%
Consumption 8kwh 0.29m³/0.6kgs/h 0.8m³/h
Cooking Area 450*400mm φ500mm φ500mm
Enlarged Cooking Area 600*400mm / /
Temp Rising 6min to Reach 260℃ 15min to Reach 260℃ 15min to Reach 260℃
Temp Difference Between Real Temp & Indicator Temp ±1℃ ±20℃ ±20℃
Homeothermy Good Poor Poor
Adventage Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k Thermostat control, automatic electronic ignition device, automatic flame failure protection device Thermostat control, automatic electronic ignition device, automatic flame failure protection device
