Japanese Griddle Teppanyaki Table Grill

Japanese Griddle Teppanyaki Table Grill

    • Japanese Griddle Teppanyaki Table Grill
    • Japanese Griddle Teppanyaki Table Grill
  • Japanese Griddle Teppanyaki Table Grill

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: GREENARK
    Certification: CE, CSA
    Model Number: CL-S9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiable
    Packaging Details: Standard Exporting Wooden Case
    Delivery Time: Within 15 to 25 Work Days
    Payment Terms: T/T, L/C, West Union
    Supply Ability: 500 units per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 & Alloy Steel Heating: Electromagnetic (Induction)
    Parameter: 380V/50HZ/8KW Capacity: 9 Seats
    Dimensions: 2000*990*800mm Dimensions With Table: 3302*2001*800mm
    Exhaustion: Optional Built-in Air Blower (380V/0.25KW) Purification: Optional Built-in Electrostatic Fume Purifier (220V/0.25KW)

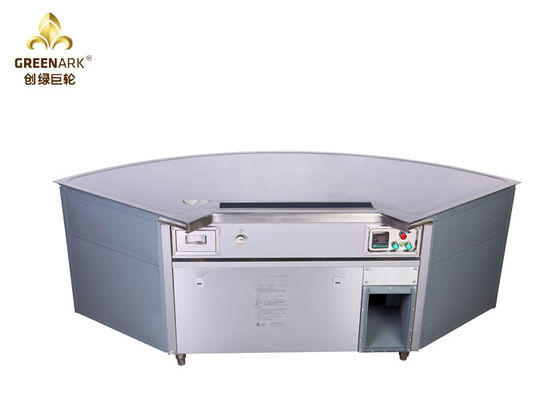

    9 Seats Fan Shape Induction / Electric Teppanyaki Grill Table with Ventilation and Purification



    Product Name 9 Seat Fan Shape Electric Teppanyaki Grill with Exhaustion & Purification System
    Heating Electromagnetic(Induction)
    Material Stainless Steel 304 & Alloy Steel
    Parameter 380V/50HZ/8KW or 220V/60HZ/6KW
    Cooking Area Regular: 450*400mm or Enlarged: 600*400mm
    Capacity 9 Seats
    Grill Dimension 2000*990*800mm
    Dimension with Table Top 3302*2001*800mm
    Exhaustion Built-in air blower (380V/0.25KW)
    Purification Built-in electrostatic fume purifier (220V/0.25KW)
    Table Decoration Regular design/customization
    Application Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
    Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
    Lead Time 15-30 working days
    Packaging Standard Shipping Wooden Case
    Brand GREENARK/OEM
    Certification ISO9001-2008, CE available; CSA, UL in progress


    Why choose Chuanglv GREENARK Teppanyaki?


    ▲ Grill body made of German 304 stainless steel and alloy steel;



    ▲ Electromagnetic (Induction) Teppanyaki:

    1] Amazing craft of cutting, bending and polishing by imported intelligent processing machines;

    2] German Infinon power module and NEC rectifier;
    3] The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time;


    ▲ Gas consumption:

    1] LPG 0.29m3/h (0.6kgs), pipeline gas 0.8m3/h.
    2] High and low voltage dust collecting plate separation technology, easy to clean;
    3] Advanced point discharging technology.





    Comparison Of Three Heating Methods
    Heating Method Electromagnetic/Induction LPG Pipeline Natural Gas
    Regular Parameter 380v/50hz/8kw/3-Phase 8kw(≈18mj/m³) 8kw(≈33mj/m³)
    Rated Pressure / 2800pa±500pa 2000pa±10%
    Consumption 8kwh 0.29m³/0.6kgs/h 0.8m³/h
    Cooking Area 450*400mm φ500mm φ500mm
    Enlarged Cooking Area 600*400mm / /
    Temp Rising 6min to Reach 260℃ 15min to Reach 260℃ 15min to Reach 260℃
    Temp Difference Between Real Temp & Indicator Temp ±1℃ ±20℃ ±20℃
    Homeothermy Good Poor Poor
    Adventage Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k Thermostat control, automatic electronic ignition device, automatic flame failure protection device Thermostat control, automatic electronic ignition device, automatic flame failure protection device
