Product Details
Place of Origin: Shanghai, China
Brand Name: GREENARK
Certification: CE, CSA
Model Number: CL-Y10
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard Exporting Wooden Case
Delivery Time: Within 15 to 25 Work Days
Payment Terms: T/T, L/C, West Union
Supply Ability: 500 units per month
Material: |
Stainless Steel 304 & Alloy Steel |
Heating: |
Electromagnetic (Induction) |
Parameter: |
380V/50HZ/8KW |
Dimensions: |
R800*800mm |
Dimensions With Table: |
R1300*800mm |
Exhaustion: |
Optional Built-in Air Blower (380V/0.25KW Or 220V/0.51KW) |
Purification: |
Optional Built-in Electrostatic Fume Purifier (220V/0.25KW) |
Table Decoration: |
Painted Wood |
Material: |
Stainless Steel 304 & Alloy Steel |
Heating: |
Electromagnetic (Induction) |
Parameter: |
380V/50HZ/8KW |
Dimensions: |
R800*800mm |
Dimensions With Table: |
R1300*800mm |
Exhaustion: |
Optional Built-in Air Blower (380V/0.25KW Or 220V/0.51KW) |
Purification: |
Optional Built-in Electrostatic Fume Purifier (220V/0.25KW) |
Table Decoration: |
Painted Wood |

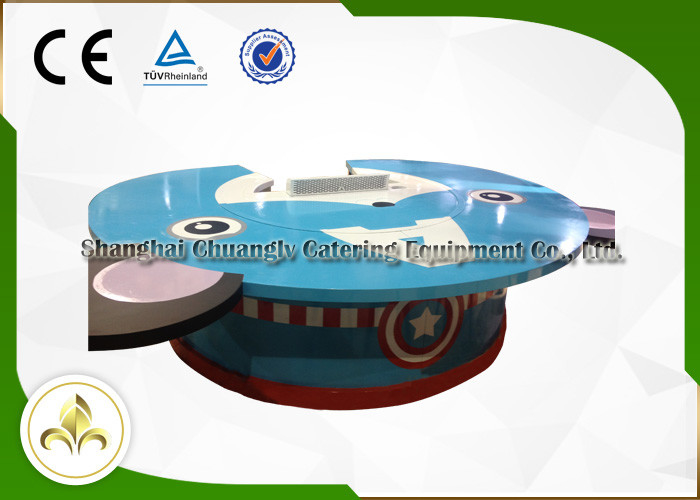

American Captain Disney Commercial Teppanyaki Grill Equipment CE ISO9001
| Product Name | American Captain Disney Customized Electric Teppanyaki Hibachi Grill Table |
| Heating | Electromagnetic(Induction) |
| Body Material | Stainless Steel 304/ Alloy Steel |
| Parameter | 380V/50HZ/8KW or 220V/60HZ/6KW |
| Cooking Area | Regular: 450*400mm or Enlarged: 600*400mm |
| Shape | Circle Shape |
| Capacity | 10 Seats |
| Grill Dimension | R800*800mm |
| Dimension with Table | R1300*800mm |
| Exhaustion | Optional built-in air blower (380V/0.25KW or 220V/0.51KW) |
| Purification | Optional built-in electrostatic fume purifier (220V/0.25KW) |
| Table Decoration | Painted Wood |
| Application | Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc. |
| Cookable Food | Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc. |
| Lead Time | 20-30 work days |
| Packaging | Standard Shipping Wooden Case |
| Brand | GREENARK/OEM |
| Certification | ISO9001-2008, CE available; CSA, UL in progress |
Why choose Chuanglv GREENARK Teppanyaki?
＊ Grill body made of German 304 stainless steel and alloy steel, heating plate made of special alloy steel with thickness of 20mm, one-piece unibody, no deformation or discoloration after long time use.
＊ Operation panel, waste container and filter made of 1.0mm stainless steel, and the air inlet made of 1.5mm mirror surface stainless steel.
＊ Electromagnetic (Induction) Teppanyaki:
German Infinon power module and NEC rectifier.
＊ Gas Teppanyaki:
Thermostat control, automatic electronic ignition device, automatic flame failure protection device.
＊ Built-in Air Blower: High temperature resistant; low noise.
＊ Built-in Taiwan Electrostatic Fume Precipitator;
＊ Certification: ISO 9001-2008; CE; CSA & UL certification in progress.
| Comparison Of Three Heating Methods | |||
| Heating Method | Electromagnetic/Induction | LPG | Pipeline Natural Gas |
| Regular Parameter | 380v/50hz/8kw/3-Phase | 8kw(≈18mj/m³) | 8kw(≈33mj/m³) |
| Rated Pressure | / | 2800pa±500pa | 2000pa±10% |
| Consumption | 8kwh | 0.29m³/0.6kgs/h | 0.8m³/h |
| Cooking Area | 450*400mm | φ500mm | φ500mm |
| Enlarged Cooking Area | 600*400mm | / | / |
| Temp Rising | 6min to Reach 260℃ | 15min to Reach 260℃ | 15min to Reach 260℃ |
| Temp Difference Between Real Temp & Indicator Temp | ±1℃ | ±20℃ | ±20℃ |
| Homeothermy | Good | Poor | Poor |
| Adventage | Safe, high efficiency, easy operation and temperature control; electromagnetic radiation only 18-30k | Thermostat control, automatic electronic ignition device, automatic flame failure protection device | Thermostat control, automatic electronic ignition device, automatic flame failure protection device |
